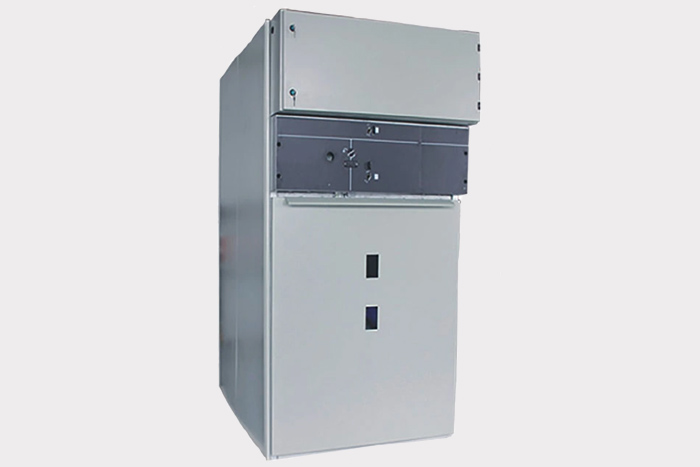

RMR-36/40.5kV is completely insulated SF6 Gas insulated Switchgear.
This product is in conformity with the standards the GB/IEC standard and the design of a high safety combined switch cabinets.
RMR-36kV is completely insulated SF6 SAFERIN(hereinafter short as SF6 Gas insulated Switchgear)This product is in conformity with the standards the GB/IEC standard and the design of a high safety combined switch cabinets.
The system of RMR-36kV of combined switch cabinets can be divided into three kinds of unit cabinet:
++++ 3 position cable connection unit (Cable switch unit), additional live shows and configuration of surge arresters and grounding fault component. Code C
++++3 position switch and fuse tripping system and earthing switch interlock system fuse combined electrical unit (Fuse combination unit), additional live shows and configuration of surge arresters and grounding fault component. Code F
++++3 position switch and vacuum circuit breaker combined appliances unit (Vacuum circuit breaker unit), additional current transformer, live shows and configuration of surge arresters and grounding faultcomponent. Code V The combination of the current transformer and the microcomputer protection to constitute the basic circuit protection function. Microcomputer protection using passive protection and CT electric no need of additional PT power supply
Main technical specifications
No
Item
Unit
C/F
V module
Load break switch
Circuit breaker
1
Rated voltage
kV
12
24
36
12
24
36
2
Rated current
A
630(200A/F)
3
Rated frequency
Hz
50/60
4
1 min power frequency withstand voltage
kV
45
55
80
45
55
80
5
Lightning impulse withstand voltage
kV
75
125/150
170/195
75
125/150
170/195
6
Rated transfer current
A
1700
1400
1200
/
7
Rated active load and close circuit breaking current
A
630
8
Rated cable charge breaking current
A
50&10
9
Rated short circuit breaking current
kA
/
20
16
16/20
10
Rated short circuit making current(peak)
kA
63
50
40/50
63
50
40/50
11
Short time(2s) withstand current,load switch/earth
kA
25/20
20/20
16/20
25/20
20/20
16/20
12
Rated withstand current(peak)
kA
63
50
40/50
63
50
40/50
13
Mechanism life
Times
3000
2000
10000
3000
5000
FM6-11kV Air Insulated Ring Main Units
Environmental Conditions
Suitable Altitude: 1000m ~ 4000m
Suitable Temperature: -40ºC ~ +45ºC
Relative Humidity: Daily mean ≤95%, monthly mean ≤90%
Gradation of Earthquake Damage: ≤ Level 8
Technical data
No.
Item
Unit
Parameter
1
Rated voltage
kV
12
24
36
2
Rated frequency
Hz
50/60
3
Rated current
A
630(1250*)
4
1min Power frequency
wet
kV
38
50
70
withstand voltage
dry
kV
48
60
85
5
Lightning impulse withstand voltage
kV
75
125/150
170
6
Rated short circuit breaking current(peak)
kA
80
63
63
7
Rated active load and close circuit breaking current
