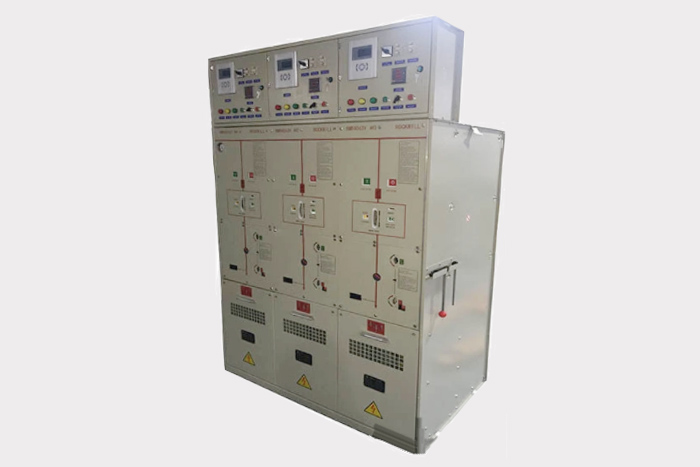

40.5kv 630A Indoor Outdoor Air/Sf6 Gas Insulation Switchgear Ring Main Unit
General
RMR-40.5kV is completely insulated SF6 SAFERIN(hereinafter short as SF6 Gas insulated Switchgear)This product is in conformity
with the standards the GB/IEC standard and the design of a high safety combined switch cabinets.
The system of RMR-40.5kV of combined switch cabinets can be divided into three kinds of unit cabinet:
++++ 3 position cable connection unit (Cable switch unit), additional live shows and configuration of surge arresters and
grounding fault component. Code C
++++3 position switch and fuse tripping system and earthing switch interlock system fuse combined electrical unit (Fuse
combination unit), additional live shows and configuration of surge arresters and grounding fault component. Code F
++++3 position switch and vacuum circuit breaker combined appliances unit (Vacuum circuit breaker unit), additional current transformer, live shows and configuration of surge arresters and grounding faultcomponent. Code V The combination of the current transformer and the microcomputer protection to constitute the basic circuit protection function. Microcomputer protection using passive protection and CT electric no need of additional PT power supply
Main technical specifications
|
No
|
Item
|
Unit
|
C/F
|
V module
|
|
Load break switch
|
Circuit breaker
|
|
1
|
Rated voltage
|
kV
|
12
|
24
|
36
|
12
|
24
|
36
|
|
2
|
Rated current
|
A
|
630(200A/F)
|
|
3
|
Rated frequency
|
Hz
|
50/60
|
|
4
|
1 min power frequency withstand voltage
|
kV
|
45
|
55
|
80
|
45
|
55
|
80
|
|
5
|
Lightning impulse withstand voltage
|
kV
|
75
|
125/150
|
170/195
|
75
|
125/150
|
170/195
|
|
6
|
Rated transfer current
|
A
|
1700
|
1400
|
1200
|
/
|
|
7
|
Rated active load and close circuit breaking current
|
A
|
630
|
|
8
|
Rated cable charge breaking current
|
A
|
50&10
|
|
9
|
Rated short circuit breaking current
|
kA
|
/
|
20
|
16
|
16/20
|
|
10
|
Rated short circuit making current(peak)
|
kA
|
63
|
50
|
40/50
|
63
|
50
|
40/50
|
|
11
|
Short time(2s) withstand current,load switch/earth
|
kA
|
25/20
|
20/20
|
16/20
|
25/20
|
20/20
|
16/20
|
|
12
|
Rated withstand current(peak)
|
kA
|
63
|
50
|
40/50
|
63
|
50
|
40/50
|
|
13
|
Mechanism life
|
Times
|
3000
|
2000
|
10000
|
3000
|
5000
|
FM6-11kv Air Insulated Ring Main Units
Environmental Conditions
Suitable Altitude: 1000m ~ 4000m
Suitable Temperature: -40ºC ~ +45ºC
Relative Humidity: Daily mean ≤95%, monthly mean ≤90%
Gradation of Earthquake Damage: ≤ Level 8
Technical data 40.5kV Ring Main Unit
| No. |
Item |
Unit |
Data |
| 1 |
Rated voltage |
KV |
11 |
| 2 |
Rated current |
A |
Load break switch: 630 |
| Circuit breaker: 63012501600 20002500.3150 |
| 3 |
Rated short-circuit current |
KA |
Combination units: 50 |
| Circuit breaker: 2025 31.5 40 |
| 4 |
Rated peak withstand current |
KA |
Primary system: 50,63,80,100 |
| 5 |
Short-time withstand current(4s) |
KA |
Load break switch: 20 |
| 6 |
Insulation: Power frequency/Lightning |
KV |
42/75 |
| 7 |
Protection class |
|
IP4X |
| 8 |
Optional load break switch |
|
FN3,FN5.FN7.FN12,FZNFKN-12 etc. |
| 9 |
Optional circuit breaker |
|
ZN28ZN63A(VS1)VD4 etc. |
| 10 |
Optional load break switch |
|
FLN36.SFLSFG etc. |
| 11 |
Operating mechanism |
|
Spring mechanism |
| 12 |
Operational power supply |
V |
DC:110.220:4C:110.220 |
| 13 |
Overall dimension(Width*Depth*Height) |
mm |
(8001000)x1200x1800(2200) |
| 14 |
Weight |
KG |
500~1000 |
