I. Core Problem Analysis and Case Illustration
Insulation performance and creepage distance are critical to the safe operation of grounding switches. Current industry pain points include: 1) Standard epoxy insulation components have poor weather and pollution resistance, making them prone to moisture absorption, cracking, and carbonization under high temperature, high humidity, or salt spray, leading to insulation breakdown; 2) Some products compromise creepage distance for compact design, leading to flashovers in humid and contaminated environments—a problem particularly prominent in complex scenarios like Southeast Asia.
Typical Case: In a 12kV distribution network within a Southeast Asian industrial park, traditional grounding switches used standard epoxy insulation with a creepage distance of less than 120mm and no anti-pollution or moisture-proof treatment. Due to local high temperatures (40°C+), high humidity (above 85%), and industrial pollution, condensation and cracking appeared within 18 months of operation, causing frequent discharges in wet weather. Following heavy rain, three units suffered insulation flashovers, resulting in an 8-hour production halt and direct losses exceeding 500,000 RMB, requiring a full batch replacement of insulation parts.
II. Targeted Solutions
This proposal focuses on"retarding insulation aging, enhancing creepage performance, and adapting to complex environments." Tailored to the Southeast Asian climate, it addresses core pain points across four dimensions:
Insulation Material Upgrade: Utilizes high-performance APG (Automatic Pressure Gelation) cast resin; the integral casting is bubble-free, increasing dielectric strength by over 30%. Anti-aging, moisture-proof, and anti-fouling additives allow endurance of extreme temperatures (-20°C to 60°C), extending insulation life from 8 years to over 20 years. Core components feature flame-retardant designs.

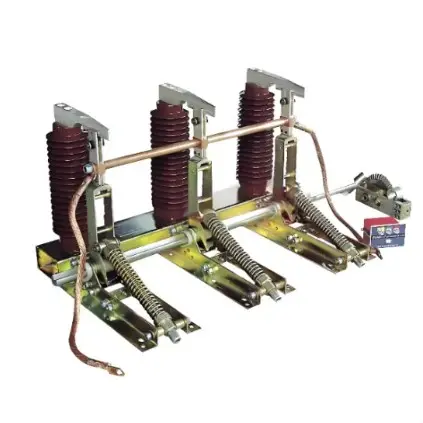

Creepage Distance Optimization: Strictly follows IEC 60298 and GB/T 11022 standards. Creepage distance is ≥140mm for 10kV classes and ≥280mm for 24kV classes. For high-pollution/high-humidity scenarios, an additional 20% margin is added using a shed-type (umbrella) structure to reduce the accumulation of pollutants and condensation.
Process-Reinforced Protection: Insulation surfaces are sprayed with nano-hydrophobic coatings. Connection points feature sealed designs with high-temperature and moisture-resistant gaskets. All insulation components pass insulation, creepage, and aging tests before leaving the factory.
Scenario Adaptation + O&M Optimization: Added heat dissipation structures for Southeast Asian scenarios and anti-salt spray treatments for coastal areas. Deploys insulation status sensors and utilizes a modular design for easy maintenance; insulation testing is conducted every 6 months.
III. Implementation Guarantee and Results
(A) Implementation Guarantee
Quality Assurance: Uses international-standard APG materials with strict quality control and multi-round factory testing; provides a 1-year free warranty and lifelong maintenance.
Technical Support: Professional teams provide customized designs and full guidance during installation and commissioning.
Training Support: Specialized training for O&M personnel to improve fault identification and handling capabilities.
(B) Implementation Results
Insulation performance is significantly enhanced; aging speed is retarded by over 70%, eliminating insulation breakdown.
Creepage hazards are thoroughly resolved; equipment failure rates have dropped by over 85%.
Insulation component life is extended to over 20 years, with O&M costs reduced by 60%.
Perfectly adapted to complex Southeast Asian scenarios (high temp/humidity, industrial pollution), ensuring power supply reliability.
IV. Conclusion
Insulation aging and insufficient creepage distance are primary triggers for grounding switch failures, especially in Southeast Asia's complex environments. Through upgrades in materials, structures, and processes, this solution balances practicality and economy. It resolves pain points at the source, extends equipment life, and reduces O&M costs, providing a robust guarantee for the stable operation of 10-24kV grounding switches.
