In wide-area overhead distribution networks, frequent transient faults are often caused by lightning, tree contact, or bird nesting. Without automation, even minor faults can lead to long-term outages along the entire line. Rockwill’s Outdoor Vacuum Recloser solution integrates advanced microprocessor-based protection and communication technologies, serving as core equipment for Feeder Automation (FA) and smart grid upgrade.
1. Challenges Your Overhead Distribution Network May Face
Traditional overhead lines without intelligent identification often suffer from these pain points:
- Frequent tripping without self-healing: 80% of overhead line faults are transient. Conventional circuit breakers require manual reset after tripping, causing unnecessary long outages.
- Extremely slow fault location: In remote mountainous or complex terrain, fault finding relies fully on manual line inspection, which is time- and labor-intensive.
- Excessive blackout range: Faults at line terminals often cause the entire main feeder to trip (upstream tripping), affecting a large number of unaffected users.
- High operational expenditure (OPEX): Frequent patrols and manual operations consume extensive human and vehicle resources.
2. Rockwill Intelligent Recloser Automation Solution
Our solution transforms conventional lines into self-healing smart feeders through deep integration of intelligent terminals and high-performance switching devices.
A. Automatic Discrimination Between Transient & Permanent Faults
With the built-in reclosing logic (1–3 shots selectable) in the Rockwill intelligent controller, the system automatically distinguishes fault types.
- Transient fault: The recloser detects and interrupts the fault within milliseconds, then automatically recloses successfully to restore power with nearly imperceptible interruption for end users.
- Permanent fault: If reclosing fails, the recloser performs lockout to isolate the faulty section and prevent fault escalation.
B. Millisecond Interruption & High-Reliability Vacuum Interruption

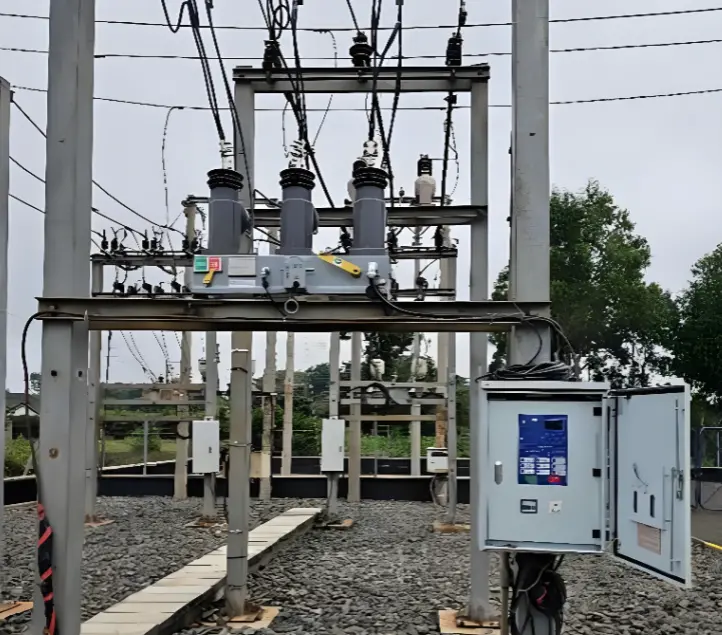

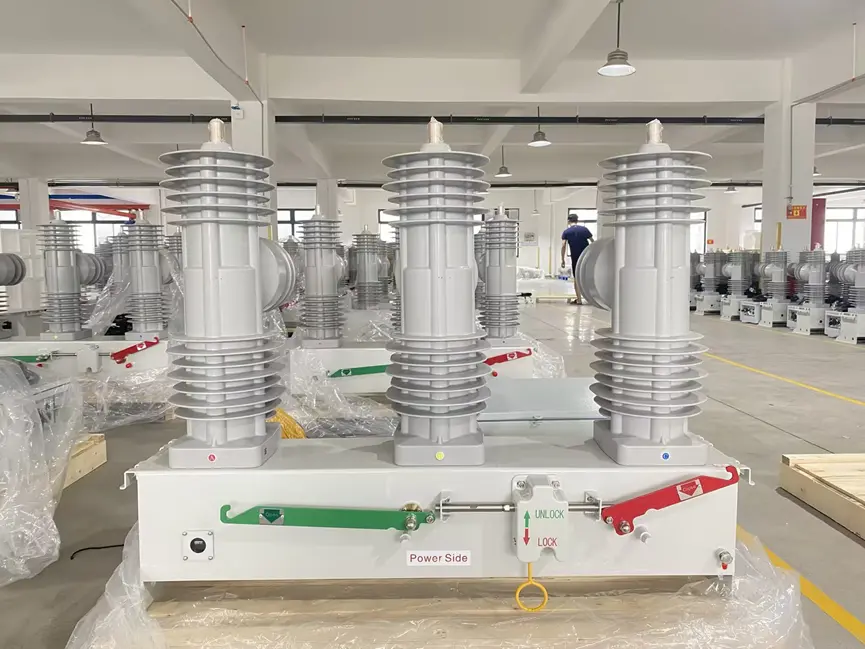

- Core component: Rockwill outdoor pole-mounted vacuum circuit breaker (VCB) with permanent magnetic or spring operating mechanism.
- Technical advantages: The vacuum interrupter features ultra-high short-circuit breaking capacity (up to 25kA) and long mechanical life, enabling maintenance-free operation in harsh outdoor environments.
C. Seamless Integration with DA/DMS Systems
The controller supports mainstream communication protocols (IEC 60870-5-101/104, DNP3, Modbus) via 4G/5G, optical fiber, or radio.
- Remote centralized control: The dispatch center obtains real-time current, voltage, and fault waveform data.
- Logical self-healing: Combined with feeder automation systems, voltage-current based distributed logic among multiple reclosers automatically realizes fault location, isolation, and power restoration for non-faulty sections.
3. Core Technical Parameters & Advantage Comparison
Evaluation Item
Conventional Pole-Mounted Switch
Rockwill Intelligent Recloser Solution
Fault Handling Logic
Single trip protection only
Intelligent transient/permanent fault detection + multiple reclosing
Outage Duration
Manual on-site operation, outage in hours
Self-healing recovery, fault isolation in seconds
Power Supply Reliability (ASAI)
Low, highly affected by environment
Extremely high, significantly improves reliability indices
Fault Location Method
Physical inspection, low efficiency
Digital location, SOE event reporting to control center
Remote Control Capability
Local operation only
Remote monitoring & control via SCADA/DA system
4. Typical Application Scenarios & Configurations
- Long-distance feeders in rural grids: Deploy 11kV/33kV outdoor reclosers to reduce frequent outages caused by tree contact and lower maintenance costs in remote areas.
- Dual-power reliability for industrial parks: Realize automatic transfer switch (ATS) function with two reclosers to ensure uninterrupted power for critical factories.
- Smart grid nodes: Act as feeder sectionalizers or boundary switches to achieve accurate zoning of fault responsibility areas.
5. Why Choose Rockwill to Improve Your Distribution Network Reliability?
- Designed for extreme environments: Stainless steel or high-grade anti-corrosion coating, IP65 protection, adaptable to rainforests, deserts, and coastal high-salt-spray environments.
- High-performance controller: Provides harmonic analysis, power factor measurement, and precise zero-sequence protection to effectively handle single-phase earth faults.
- Compliance assurance: Fully compliant with IEC 62271-111 and ANSI/IEEE C37.60 international recloser standards.
Upgrade Your Distribution Assets Today
By deploying Rockwill intelligent reclosers, your grid will shift from “passive maintenance” to “active self-healing”. Contact our experts for a customized feeder automation design.
- Request Intelligent Recloser Datasheet – Get detailed protection curves and communication specifications.
- Book Expert Solution Demo – Learn how to integrate into your existing SCADA system.
- Get Customized Quotation – Find the most cost-effective hardware support for your distribution network upgrade.
