I. Core Challenges Facing the Philippine Distribution Network
1.1 Frequent Typhoons — Mechanical Impact and Post-Disaster Restoration
Dimension
Data
Impact on Distribution Network
Average annual typhoon landfalls
20 (PAGASA data)
Lines endure continuous mechanical stress during the May-December typhoon season
Super typhoon maximum wind speed
>250 km/h (e.g., 2024 Typhoon Gaemi)
Broken conductors, collapsed poles, hardware fatigue fracture
Post-typhoon area outage duration
3-14 days (industry survey data)
Manual line inspection → restoration only after full-line repair
Safety risk of working in rain
Repair crew casualties concentrated post-typhoon
Reducing manual work in the rain is a critical requirement
Traditional pole-mounted circuit breakers trip frequently under typhoon impact but lack automatic reclosing — each trip requires on-site manual closing. During typhoon season, EC technical staff are stretched thin, with some areas requiring a full week to complete line patrol and reclosing after a typhoon.
1.2 Archipelagic Geography — O&M Coverage and Logistics Challenges
Dimension
Current Situation
Number of islands
7,641, three major island groups (Luzon, Visayas, Mindanao)
EC distribution
121 ECs operating independently, averaging 50,000-150,000 customers each
Technical staffing
Most EC maintenance teams have only 10-30 personnel
Inter-island transportation
2-7 days by sea, remote islands require multiple mode transfers
Spare parts supply chain
Imported equipment spare parts lead time 8-16 weeks
1.3 Vegetation and Animal Interference — Extremely High Proportion of Transient Faults
The Philippines has extensive tropical rainforest and coconut groves. Coastal coconut trees reach 20-30m in height, and broken branches frequently contact conductors during typhoon season. Mountainous lines pass through forested areas with frequent monkey, snake, and bird activity. According to operational statistics from some ECs:
Fault Type
Proportion
Current Handling
Improvement Potential
Transient faults (vegetation/animal/wind swing)
70-80%
On-site manual reclosing, 3-6h each
Auto-reclose can eliminate 80%+
Permanent faults (broken conductor/pole collapse/equipment damage)
20-30%
Full-line patrol to locate, 1-3 days
Fault location can be reduced to minutes
1.4 Limited EC O&M Resources — Network Loss and Automation Pressure
Dimension
Current Situation
SCADA penetration
Most ECs still rely on manual dispatch, automation coverage <30%
System loss rate
Some ECs as high as 12-18% (international benchmark <8%)
Investment capacity
Most ECs have limited budgets, requiring phased equipment upgrades
The core dilemma for ECs is: regulatory requirements tighten year by year, but automation investment budgets and specialized technical talent are both limited.
II. Failure Mechanism Analysis: Why Traditional Circuit Breakers Cannot Withstand Typhoon Conditions
2.1 Mechanical Impact — Structural Fatigue and Interruption Overload
Typhoon damage to pole-mounted equipment occurs through three main paths:
(1) Conductor wind swing causing hardware fatigue: When wind speed exceeds 40m/s, the conductor swing angle exceeds the design value (typically 30-45°), subjecting tension and suspension clamps to cyclic bending stress. A single storm during typhoon season can produce hundreds of large-amplitude swings, causing hardware to reach fatigue life endpoint after 2-3 typhoon seasons.
(2) Short-circuit interruption cycles exceeding design limits: Typhoon-induced conductor breakage/contact creates high-current short circuits. Traditional circuit breakers typically have a mechanical life of 2,000-5,000 operations, but may endure 5-10 short-circuit interruptions in a single day during typhoon season.
(3) Insufficient enclosure structural strength: Some products on the market have enclosure walls only 1.5-2mm thick. When wind speed exceeds 50m/s, enclosure deformation leads to internal mechanism jamming and seal failure.
2.2 Salt Fog Penetration — Electrical and Sealing System Degradation Paths
Coastal areas of the Philippines have salt fog deposition rates exceeding 300 mg/m²·d (equivalent to ISO 12944-2:2017 C5-M class). Salt fog enters equipment through:
(1) Control cabinet breathing effect: Day-night temperature differences combined with solar radiation cause periodic pressure changes inside the cabinet. Enclosures without breathers or with insufficient IP54 protection will draw in salt-laden air during negative pressure phases. After 3-5 years, internal terminal blocks, circuit boards, and relay contacts develop green copper corrosion.
(2) Loss of silicone rubber shed hydrophobicity migration: After salt deposits on shed surfaces, under UV + high temperature, hydrophobicity migrates to the surfacepollution-contamination layer, causing increased surface leakage current when the contamination layer is wetted, ultimately triggering flashover.
2.3 Insulator Rain Flashover and Pollution Flashover
Typhoons bring continuous heavy rain (rainfall intensity up to 50-100mm/h), bridging insulator surfaces with water and increasing leakage current. Dry-band arcs form at shed edges; if the arc cannot self-extinguish, it develops into surface flashover.
III. Solution: Rockwill Outdoor Vacuum Recloser
3.1 Core Product Parameters
Item
13.2kV Model
34.5kV Model
Rated system voltage
13.2kV (max 15kV)
34.5kV (max 38kV)
Rated current
630A
630A
Rated short-circuit breaking current
16kA
12.5kA
Rated frequency
60Hz (Philippine standard)
60Hz
Arc-quenching medium
High-purity vacuum interrupter
High-purity vacuum interrupter
Standard reclosing sequence
3-4 shots, configurable
3-4 shots, configurable
Total opening time
≤35ms
≤35ms
Wind resistance rating
≥55m/s (≥16 on Beaufort scale)¹
≥55m/s¹
Enclosure protection rating
IP65 (cable entry IP67)
IP65 (cable entry IP67)
Corrosion protection class
C5-M
C5-M
Environmental range
-10°C~+60°C, 95% RH
-10°C~+60°C, 95% RH
Communication protocols
DNP3 / IEC 60870-5-104 / Modbus TCP / IEC 61850
Same
Control mode
Local manual + EC Web platform remote control
Same
60Hz Note: The Philippine grid frequency is 60Hz (same as the US/Japan). Rockwill reclosers are calibrated for 60Hz before shipment and support dual 50/60Hz frequency adaptation.Note 1: Measured wind speeds of super typhoons in the Philippines can exceed >250km/h (~70m/s, e.g., 2024 Typhoon Gaemi). Rockwill reclosers are designed per IEC 62271-111 wind load requirements. The 55m/s rating is the nominal wind resistance class (≥16 Beaufort), verified through finite element analysis for structural margin. Equipment may still be damaged under extreme super typhoon conditions, but the design ensures structural integrity post-typhoon and allows remote test re-energization.
3.2 Typhoon-Specific Structural Reinforcement
Reinforcement Item
Design Parameter
Industry Typical Value
Verification Method
Pole housing wall thickness
3mm SUS304 stainless steel
1.5-2mm
Finite element wind load analysis
Insulator creepage distance
≥31mm/kV (34.5kV class)
≥25mm/kV
IEC 60815 selection verification
Mounting bracket
Heavy-duty hot-dip galvanized, bolts ≥Grade 8.8
Standard galvanized
ASTM B117-19 salt spray test 1000h
Cable entry
Double-layer waterproof sealed connector
Single-layer seal
IP67 grade verification
Core structural design logic: Not aiming for zero faults during a typhoon, but ensuring the equipment remains structurally intact post-typhoon and can be remotely test re-energized.

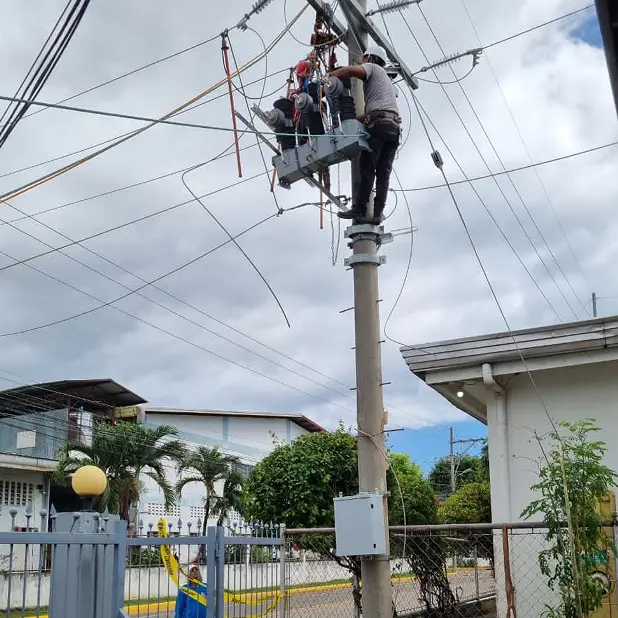

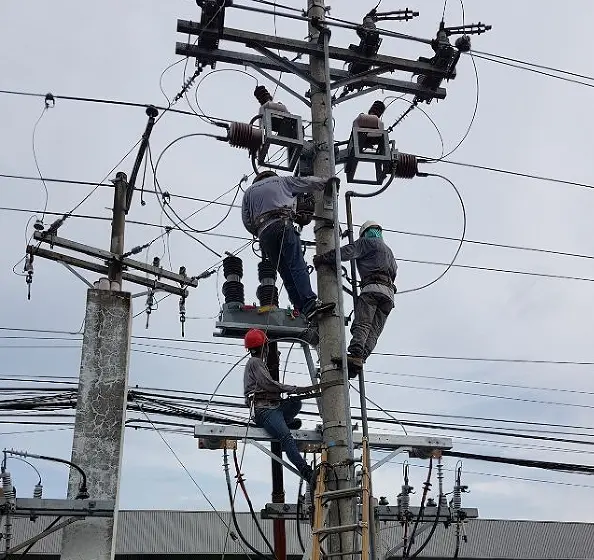

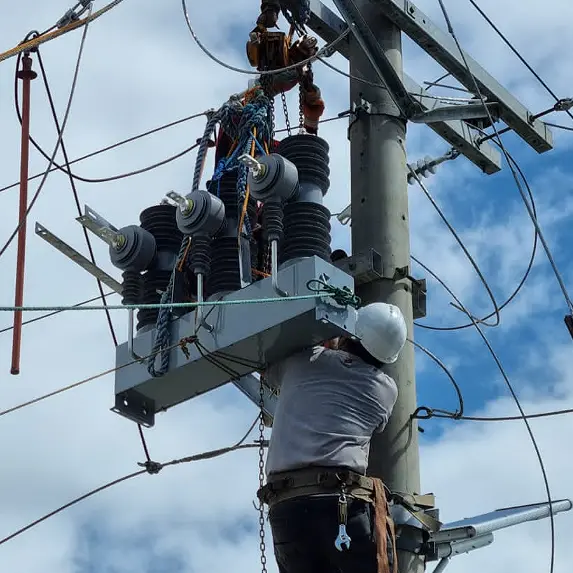

Modular Design: Single-phase modular structure, each unit <80kg, installable without heavy lifting equipment. Modules connect via standardized aviation plugs for plug-and-play on site, adapted to Philippine inter-island shipping and manual handling conditions on remote islands.
3.3 High Temperature, High Humidity, and Coastal Salt Fog Protection
Test Item
Standard
Conditions
Result
Salt spray test
ASTM B117-19
1000h continuous spray
No red rust, no coating blistering, no seal degradation
Damp heat cyclic
IEC 60068-2-30
55°C / 95% RH, 6 cycles
Insulation performance passed
Temperature/humidity combined cycle
IEC 60068-2-38
12h temperature cycles × 3
No internal condensation
The housing and flanges use C5-M grade epoxy powder coating (per ISO 12944-5:2019), with total coating thickness ≥320μm. The seal groove area strictly avoids coating and undergoes passivation treatment, with seal groove roughness Ra <0.8μm (per ISO 3601-2).
3.4 Intelligent Fault Self-Healing System
Equipped with an intelligent measurement and control unit adapted for the Philippine 13.2kV/34.5kV distribution network, designed per IEC 62271-111:2019:
- Multiple automatic reclosing: Supports 3-4 shot reclosing sequences with programmable intervals of 0.5-60s. Over 80% of vegetation/animal/wind-rain caused transient faults are cleared within the first 2 reclosing shots
- Fault type self-identification: Accurately distinguishes between transient and permanent faults. Transient faults automatically restore power and increment the counter; permanent faults automatically lock and isolate after failed reclosing, simultaneously reporting the fault location to the EC Web platform
- Fault recording: Standard fault recording function, capturing 5 cycles of voltage and current waveforms before and after the fault to assist incident analysis

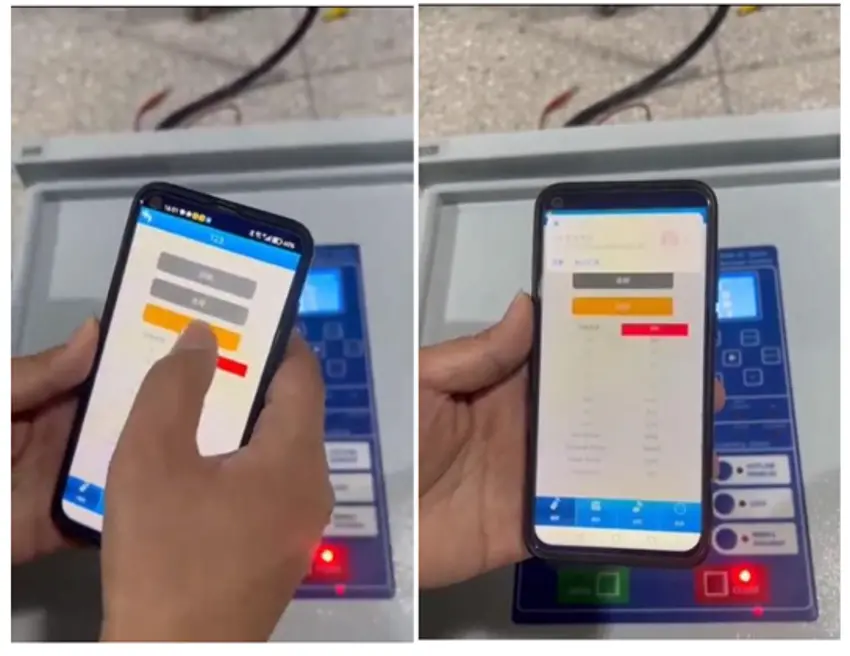

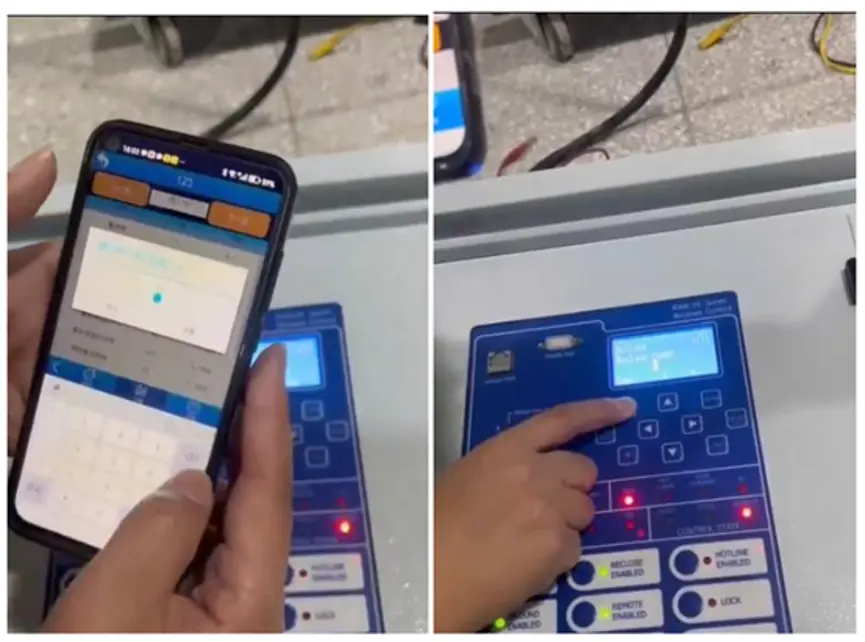

3.5 Zero-Threshold EC Remote O&M — Web Platform Solution
To address the fact that most Philippine ECs lack SCADA systems, Rockwill provides a self-built Web remote O&M platform, requiring no SCADA master station investment:
Function
Description
Application Scenario
Real-time monitoring
Real-time curves of voltage, current, power, power factor
Daily operation monitoring
Proactive fault alert
Trip/reclose success/lockout SMS + App push
Immediate fault notification when unattended
Remote open/close
Web-based remote operation
Post-typhoon remote test re-energization
Remote protection setting
Online modification, batch distribution
No on-site visit needed for load changes
Historical data query
Operating data + fault recording download
Incident analysis, outage statistics
Security Access Control: The Web platform uses HTTPS (TLS 1.3) encrypted transmission, supports two-factor authentication (password + dynamic verification code), and maintains full audit trails of all operations. Remote open/close operations require two-level authorization confirmation to prevent misoperation.
Communication Method: Priority given to 4G LTE (coverage >85% on major Philippine islands), with satellite communication module optional for remote islands. Supports offline cache mode — local operation and data storage during network outages, with automatic re-upload upon reconnection. Communication protocols support DNP3, Modbus TCP, IEC 60870-5-104, IEC 61850.
Extreme Scenario Response: If both 4G and satellite communication are simultaneously interrupted (e.g., typhoon destroying base stations), the equipment continues independent operation based on local protection settings, with auto-reclose function unaffected. Upon communication recovery, the equipment automatically re-uploads fault records and event logs from the offline period. Maintenance personnel can also visit the site to manually open/close via the local operation panel (IP65 rated, rain-operation capable).
3.6 Core Advantage Comparison
Comparison Dimension
Traditional 13.2kV/34.5kV Pole-Mounted CB
Rockwill Outdoor Vacuum Recloser
Typhoon season fault restoration
On-site manual reclosing, 3-6h each; full-line patrol 1-3 days
Auto-reclose within 60s; remote test re-energization, no rain operation needed
Wind resistance
Typically no clear wind resistance rating
Structural reinforcement ≥55m/s (16 Beaufort), 3mm SUS304 housing
Corrosion protection
Standard coating, coastal 2-3 year corrosion
C5-M ≥320μm, design life ≥25 years
Daily O&M
Fully manual on-site patrols, EC staff stretched
Web remote platform + mobile alerts, patrols reduced 60-70%
SCADA dependency
Requires building own SCADA for remote access
Built-in Web platform, zero-threshold EC access
Fault location
Full-line patrol to find
Fault recording + location reporting, direct to fault point
IV. Typhoon Season Risk Matrix and Graded Emergency Response Plan
Risk Level
Trigger Condition
Response Timeline
Red (High Risk)
PAGASA issues TCWS #4 or above (wind speed ≥118km/h); or line outage caused by conductor breakage/pole collapse
Remotely isolate faulted section; dispatch repair within 4h after typhoon passage
Orange (Medium Risk)
PAGASA issues TCWS #2-#3 (wind speed 62-117km/h); coastal sections with salt fog + sustained high winds; or equipment has locked out after 3+ failed recloses
Increase remote monitoring to every 1h; schedule maintenance window within 72h
Yellow (Low Risk)
Normal thunderstorm season (TCWS #1 and below); single transient fault successfully reclosed
Maintain daily Web platform monitoring; complete comprehensive pre-season inspection before typhoon season
Red Response Workflow:
- Receive PAGASA TCWS #4 or above warning → Batch update protection settings via Web platform (increase short-time delay protection sensitivity)
- During typhoon passage → Remotely monitor recloser operations; auto-report fault location upon lockout
- Post-typhoon → Deploy repair crews directly based on reported locations, skipping the full-line patrol phase
V. Implementation Roadmap
Phase 1: Pre-Typhoon Season Preparation (April-May Annually)
Work Item
Standard
Equipment status check
Verify all recloser operating status and communication link integrity
Protection setting review
Optimize settings based on previous year's fault records
Spare parts prepositioning
Pre-stock key modules in Luzon/Visayas/Mindanao regional spare parts warehouses
Communication module test
4G/satellite communication link connectivity test, SIM card balance/expiry confirmation
EC operation training
Remote classroom review of Web platform operating procedures
Phase 2: Typhoon Emergency Response (Landfall to 72h Post-Passage)
Time Window
Action
24h before typhoon landfall
Send equipment status snapshot via Web platform, confirm all devices online
During typhoon passage
Remote monitoring, auto-reclose handles transient faults
0-4h post-typhoon
Plan repair routes based on fault location reports
4-24h post-typhoon
Remote test re-energization to restore sections without permanent faults
24-72h post-typhoon
On-site repair of permanent fault sections + comprehensive equipment status verification
Phase 3: Post-Typhoon Season Assessment (Within 30 Days)
- Compile all recloser operation counts and fault recording data
- Analyze reclose success rate, fault type distribution, and protection setting reasonableness
- Produce quarterly operation report to inform optimization for the next typhoon season
VI. Installation Quality Control Checklist
- Mounting bracket-to-pole connection bolt torque compliant (≥Grade 8.8, torque per design drawing)
- Cable entry waterproof sealed connector tightened to IP67 grade
- Control cabinet breather correctly installed, desiccant status normal (not saturated/discolored)
- Control cabinet grounding resistance ≤4Ω
- Communication antenna orientation correct, 4G signal strength ≥-85dBm
- Control cables between main unit and control cabinet correctly wired, no loose connections
- Protection settings distributed per latest configuration table, parameter readback confirmed consistent
- Remote open/close test ×3, Web platform status feedback correct
- Fault simulation test (transient/permanent), confirm reclosing logic is normal
- System time synchronized to NTP server, ensure fault recording timestamp is accurate
- EC operator completes on-site acceptance sign-off
