Project Background

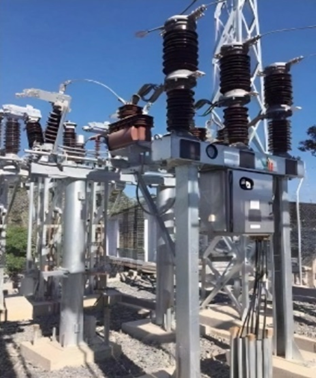

Nigeria’s tropical climate, characterized by year-round high temperatures (annual average of 35°C) and humidity (≥80%), poses significant challenges to the sealing integrity, insulation performance, and gas management of electrical equipment. Rockwill was contracted to upgrade a 33kV substation, deploying its proprietary HV-type SF6 circuit breaker to address critical issues:
Sealing Failure Risks: Accelerated aging of seals due to heat and water ingress during monsoon seasons.
SF6 Gas Management: High humidity increases risks of gas liquefaction and moisture(exceeding limits), compromising insulation.
Frequent Operations: Demand for ≥6,000 mechanical cycles to handle grid fluctuations via capacitor bank switching.
Technical Solutions
Standardized Installation
• Compliance: Strict adherence to GBJ147-90 standards and manufacturer guidelines, supplemented with detailed work instructions.
• Hoisting: 16-ton crane for precise positioning, coupled with porcelain insulator withstand tests (power-frequency voltage ≥33kV, lightning impulse voltage ≥170kV).
• Conductor Crimping: Hydraulic crimping tools with ≤5% torque error to minimize contact resistance under high temperatures.
High-Precision Vacuum & Gas Handling
• Pipeline Prep: Pipes cleaned with anhydrous alcohol; sealing grooves coated with 7501 silicone grease to prevent contamination.
• Vacuum Process: Two-stage vacuum pumping to 133Pa, held for 8 hours, followed by 4-hour observation (≤1% fluctuation).
• Gas Quality: SF6 moisture content verified (≤8ppm per cylinder) and post-filling chamber checks (≤150ppm). Leak detection via 1×10⁻⁶ sensitivity detectors.
Climate-Adaptive Design
• Waterproof Seals: Flange grooves coated with waterproof adhesive (-20°C~120°C) and reinforced with shaft retaining rings.
• Anti-Condensation: Built-in humidity-controlled dehumidifiers (threshold: 70%) to prevent gas liquefaction.
• High-Temperature Materials: Silver-plated copper-tungsten alloy contacts withstand arc temperatures ≥2,000°C (contact resistance ≤35μΩ).
Maintenance & Local Support
• Modular Maintenance: Detachable arc chutes enable rapid component replacement, minimizing downtime.
• Local Training: Lagos-based technical center offers hands-on training in gas analysis, mechanical debugging, and more.
• Smart Monitoring: Integrated pressure sensors and wireless modules track SF6 density, temperature, and operations, with auto-alerts for anomalies.
Key Achievements
Reliability: Post-deployment annual failure rate <0.2%, supporting ≥10 daily capacitor switching operations.
Environmental Resilience: Passed 72-hour (45°C, 95% humidity), exceeding IEC 62271-203 sealing standards.
Cost Efficiency: 8-year maintenance cycles (vs. oil circuit breakers) and 30% lower lifecycle costs.
Conclusion
Rockwill’s solution combines rigorous process controls (vacuum protocols, gas QA) and climate-adaptive innovations (waterproof seals, smart dehumidification) to overcome Nigeria’s extreme conditions, setting a replicable benchmark for SF6 breaker applications in Africa. Future plans include SF6/N₂ hybrid gas technology to further reduce carbon emissions and operational costs.
