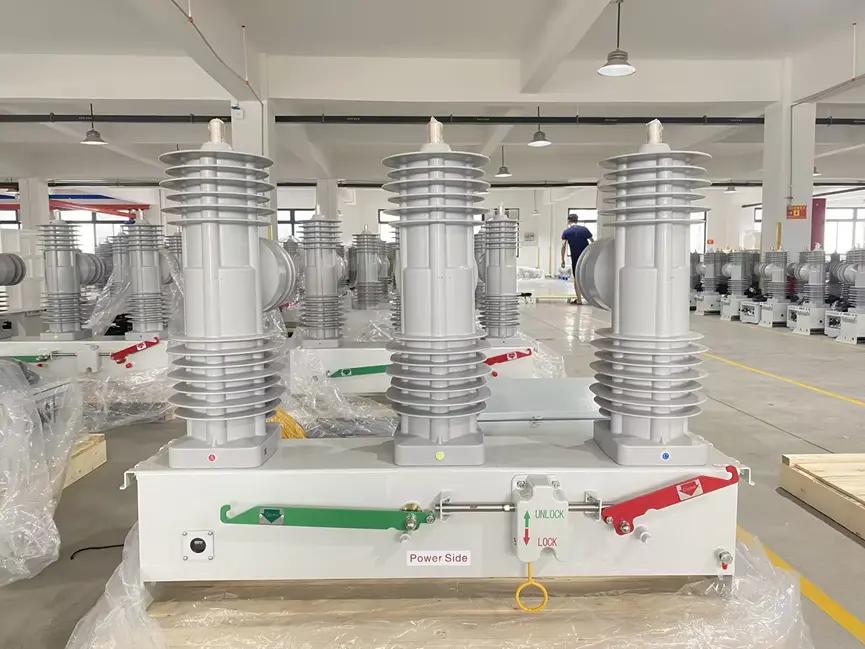

As distribution grids worldwide undergo digital transformation, traditional “dumb” switches can no longer meet modern grid operation requirements. Rockwill’s IoT Intelligent Vacuum Recloser integrates high-performance controllers and multiple communication technologies, turning physical equipment into digital nodes and helping power assets shift from reactive maintenance to proactive operation and maintenance.
1. Bottlenecks of Traditional Distribution Network O&M
In the development of smart grids and unattended substations, conventional reclosers often suffer from these limitations:
- “Black box” operation: No real-time access to current, voltage, or load fluctuation data, resulting in delayed decision-making.
- High manual dependency: Technicians must travel to remote sites for switching operations or fault waveform extraction after failures.
- Surge in operational expenditure (OPEX): Lack of preventive maintenance leads to costly emergency replacement after equipment breakdown.
- Data silos: Inability to connect seamlessly with SCADA/DMS systems, making it difficult to form a complete distribution automation closed loop.
2. Rockwill IoT Smart Recloser Core Solution
Our solution uses an edge computing + cloud management architecture to deliver intelligent sensing capabilities to overhead lines and distribution nodes.
A. Deeply Integrated FTU/DTU Intelligent Controller
Our recloser is not only a switch but also a distribution automation terminal.
- Multi-protocol communication: Native support for 4G/5G, LoRa, RS485, optical fiber, and radio communication.
- Remote operation: Supports remote switching, real-time setting group adjustment, and status reset.
- High-precision measurement: 0.5S-class accuracy for real-time reporting of three-phase current, voltage, power factor, harmonics, and frequency.
B. Digital Fault Analysis & Event Recording
- Fault recording (COMTRADE): Automatically captures waveforms before and after faults, remotely downloadable for off-site analysis.
- SOE (Sequence of Events): Precise timestamps for all operations and alarms with 1ms resolution, providing reliable evidence for fault tracing.
C. Preventive Maintenance & Active Early Warning
Built-in sensors and edge algorithms identify potential risks in advance:
- Mechanism monitoring: Tracks coil status and operation counts to warn of mechanical jamming.
- Health assessment: Combines temperature rise and insulation monitoring to detect insulation degradation caused by environmental factors.
3. Technical Comparison: Conventional Recloser vs. Rockwill IoT Smart Recloser
Evaluation Item
Conventional Pole-Mounted Recloser
Rockwill IoT Smart Recloser
Communication Capability
Local control only, no communication
Fully integrated 4G/5G/LoRa/RS485
Control Method
On-site manual operation only
One-click remote control via SCADA/DMS
Fault Analysis
Manual on-site inspection
Remote waveform and fault data export
O&M Mode
Reactive maintenance
Proactive early warning & preventive maintenance
System Compatibility
Isolated operation
Supports DNP3 / IEC 104 / IEC 61850
4. Typical Application Scenarios
- Unattended substations / large industrial parks: Eliminates large-scale line inspection; full grid visibility from a central station.
- Urban smart distribution networks: Links with SCADA for second-level fault location and load transfer.
- Remote mining and border lines: Long-distance LoRa or satellite communication for monitoring in uncovered areas.
5. Why Choose Rockwill for Digital O&M?
- Integrated software & hardware: Full-process automation support from substation protection to pole-top reclosers.
- Cybersecurity: Communication modules support VPN and encrypted protocols for secure control command transmission.
- Lower TCO: Reduces on-site inspections by up to 70% and extends equipment life by 25%, significantly improving ROI.
Step Into the New Era of Smart Grid O&M
Data is the most valuable asset of the grid.
Rockwill’s professional engineering team provides one-stop services from site survey to SCADA integration, empowering your digital distribution transformation.
- Request IoT Recloser Quotation – Get a fully integrated communication solution.
- Book Online Demo – View real-time monitoring on our cloud platform remotely.
- Download Communication Protocol Manual – Learn fast integration with DNP3/IEC 104 systems.
