As the global energy structure transforms, the integration of distributed photovoltaic (PV) and wind power systems has introduced bidirectional power flow challenges to traditional distribution networks. How to ensure the safe and stable integration of renewable energy while effectively avoiding impacts on the main grid?
Rockwill’s smart recloser grid-connection protection solution is specially designed for the fluctuating characteristics of renewable energy. With integrated core protection logic, it serves as a critical link connecting clean energy to a stable power grid.
1. Severe Challenges in Renewable Energy Grid Integration
At the Point of Common Coupling (PCC) or distributed generation access feeders, typical safety risks include:
- Islanding Effect: When the main grid loses voltage, the PV system continues supplying power to local loads, endangering field maintenance personnel and potentially causing out-of-phase synchronization during grid restoration.
- Reverse Power Flow: When local generation exceeds load demand, reverse current flows into the main grid, which may cause abnormal voltage rise or damage non-directional protection equipment.
- Harmonic Interference & Voltage Fluctuation: Harmonics from power electronic inverters and unstable renewable output severely degrade power quality.
- Expanded Fault Range: Inaccurate protection settings may cause internal faults to spread to the main grid, or main grid faults to trigger unnecessary disconnection of renewable systems.
2. Rockwill Core Solution for Renewable Grid Integration

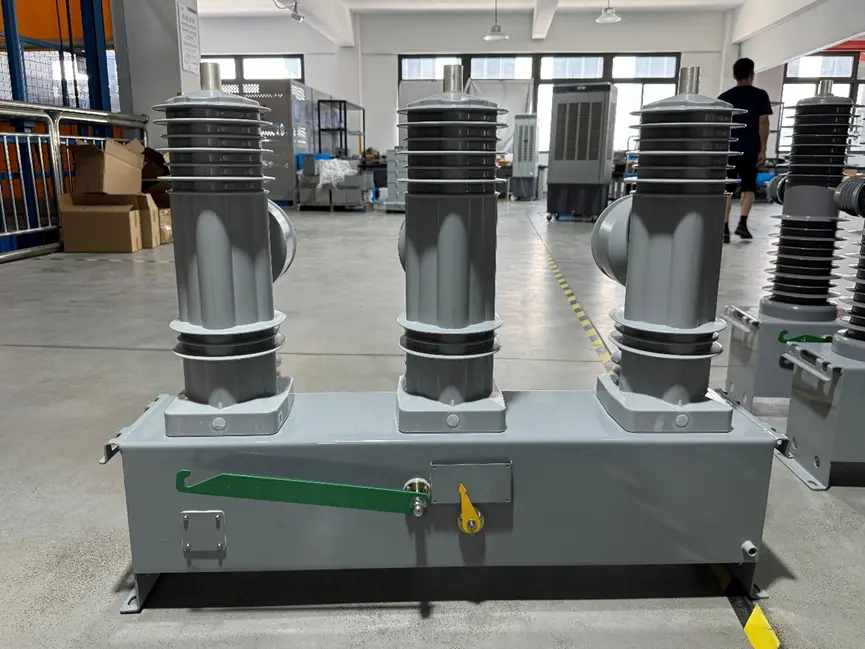

Our solution centers on the outdoor smart vacuum recloser, using advanced controller algorithms for real-time monitoring and fast tripping at the PCC.
A. Deeply Integrated “Renewable-Specific Protection”
Unlike conventional distribution protection, Rockwill smart reclosers have built-in essential protection functions for renewable energy:
- Anti-Islanding Protection: Uses Rate of Change of Frequency (ROCOF) detection and active phase-shift technology to achieve millisecond-level tripping when the main grid fails.
- Reverse Power Protection: Precisely monitors power direction and automatically trips when reverse power exceeds the threshold, protecting main grid assets.
- Voltage/Frequency Check (Live Line/Dead Bus Check): Ensures closing and grid connection only when main grid voltage is stable and phase alignment is achieved.
B. Flexible Protection Curves & Four-Quadrant Metering
- Adaptive Settings: Adapts to PV output fluctuations, supporting flexible switching of multiple protection groups (day/night, wet/dry seasons).
- Power Quality Monitoring: Real-time measurement of Total Harmonic Distortion (THD), active/reactive power and power quality parameters, providing digital support for operation and maintenance.
C. Linkage with Battery Energy Storage Systems (BESS)
The recloser controller supports communication with Power Conversion Systems (PCS) for logical coordination:
- When the main grid fluctuates, energy storage is prioritized for compensation. If fluctuations exceed safety limits, the recloser performs physical isolation to ensure grid-connection safety.
3. Technical Comparison: Conventional Circuit Breaker vs. Rockwill Smart Recloser
Feature
Conventional Circuit Breaker + Protection Panel
Rockwill Renewable-Dedicated Smart Recloser
Integration
Dispersed configuration, complex wiring
All-in-one protection, measurement, control & communication
Anti-Islanding
Slow response, requires extra relay
Built-in high-sensitivity anti-islanding algorithm, millisecond tripping
Power Direction Monitoring
Not available or complex wiring
Supports bidirectional power monitoring & reverse power blocking
Communication Protocols
Limited interfaces
Native support for IEC 61850 / DNP3 / Modbus
Environmental Adaptability
Indoor cabinet installation required
IP65 full outdoor design, direct connection to overhead lines at PCC
4. Typical Application Scenarios

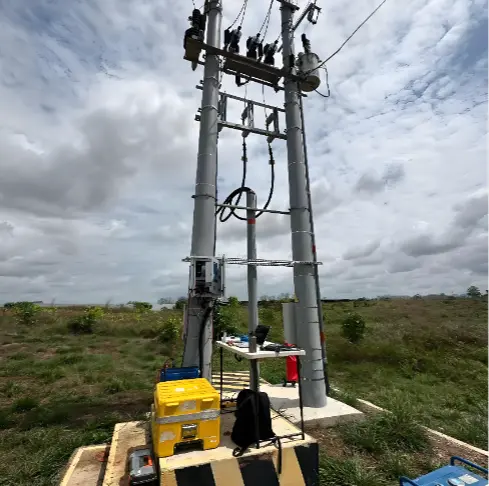

- Distributed PV Grid-Connection Points: Used as 11kV/33kV feeder access protection for unattended intelligent management.
- Small & Medium-Sized Wind Farms: Solves voltage transients caused by sudden wind speed changes and ensures safe grid connection.
- Industrial & Commercial Energy Storage Integration: Provides physical-level safety barriers for overcurrent, overvoltage and reverse power at the grid access side of energy storage systems.
5. Why Rockwill Is Your Ideal Partner for Renewable Projects?
- International Grid-Connection Compliance: Designed in accordance with IEEE 1547, IEC 61727 and other international standards for renewable energy integration.
- Digital O&M: Combined with a cloud platform, users can monitor real-time current, power and status at the PCC via mobile devices.
- High-Reliability Hardware: Core vacuum interrupter technology with mechanical life up to 30,000 operations, reducing full-life-cycle maintenance costs.
Enhance the Value of Your Renewable Energy System
Safe grid connection is the premise of return on investment (ROI).
Rockwill’s professional engineering team assists in protection curve setting and system commissioning to safeguard your green energy projects.
- Get a Grid-Protection Quotation – Receive a customized recloser solution for PV applications.
- Download Anti-Islanding Technical Document – Learn more about our algorithm logic and response time.
- Consult a Renewable Energy Specialist – Discuss integration challenges in specific grid environments.
