1 - More detailed AC power of YBS, please refer to the de-rating curve.
2 - Rated output voltage from 10 kV to 35 kV, more available upon request
3 - Extra expense needed for optional features which standard product doesn’t contain, more options upon request. 4 -When ambient temperature ≥55℃, awning shall be equipped for YBS on site by customer.
5- For higher operating altitude, pls consult with Rockwill.
|

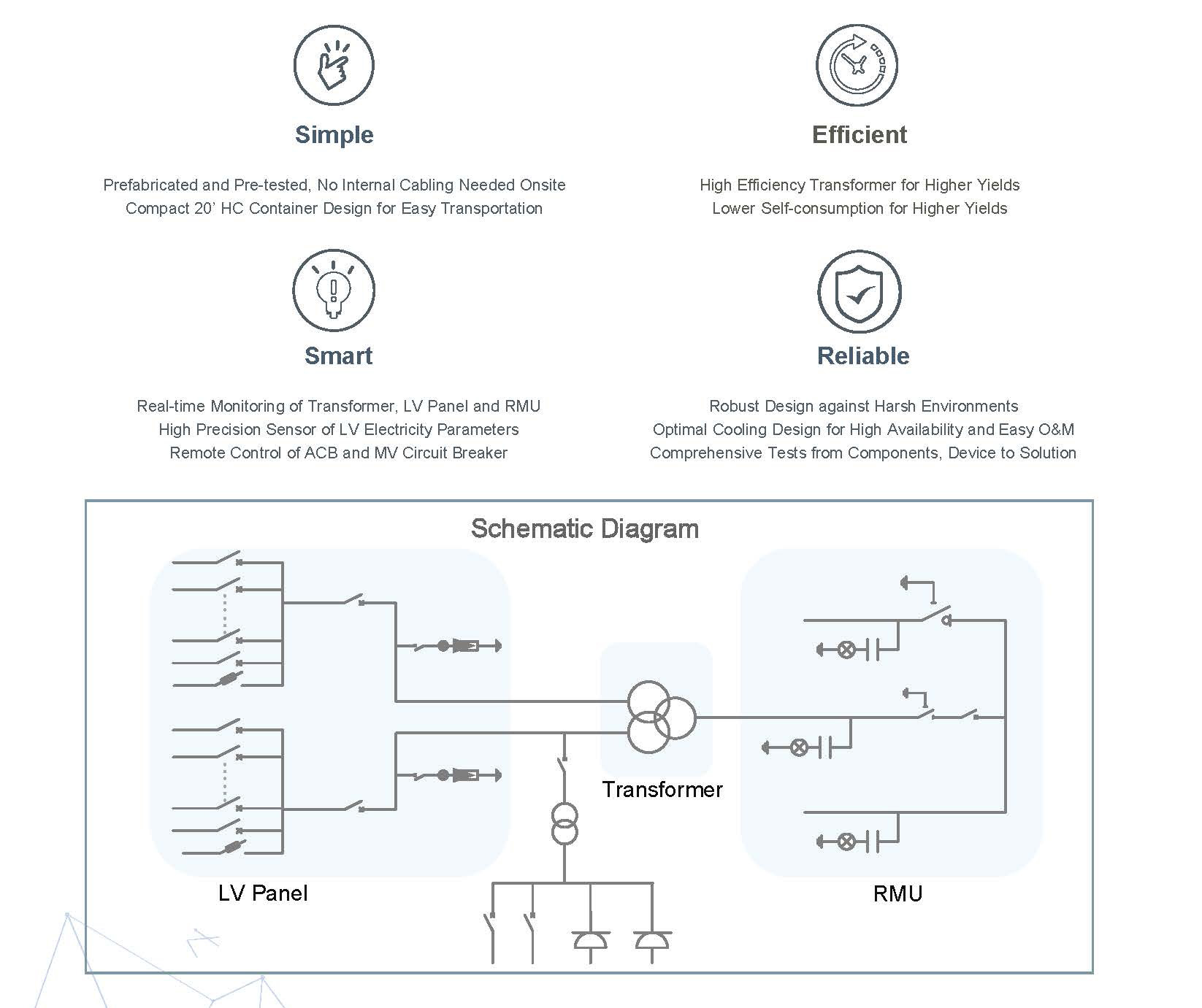

Input
|
Available Inverters / PCS
|
SUN2000-200KTL / SUN2000-215KTL / SUN2000-185KTL / LUNA2000-200KTL
|
Maximum LV AC Inputs
|
34
|
AC Power
|
6,800 kVA @40℃ 1
|
Rated Input Voltage
|
800 V
|
LV Main Switches
|
ACB (2,900 A / 800 V / 3P, 2 x 1 pcs), MCCB (250 A / 800 V / 3P, 2 x 17 pcs)
|
|
Output
|
Rated Output Voltage
|
11 kV, 15 kV, 20 kV, 22 kV, 30 kV, 33 kV, 35 kV 2
|
13.8 kV, 34.5 kV 2
|
Frequency
|
50 Hz
|
60 Hz
|
Transformer Type
|
Oil-immersed, Conservator Type
|
Transformer Cooling Type
|
ONAN
|
Transformer Tappings
|
± 2 x 2.5%
|
Transformer Oil Type
|
Mineral Oil (PCB Free)
|
Transformer Vector Group
|
Dy11-y11
|
Transformer Min. Peak Efficiency Index
|
Tier 1 or Tier 2 In Accordance with EN 50588-1
|
RMU Type
|
SF6 Gas Insulated
|
RMU Transformer Protection Unit
|
MV Vacuum Circuit Breaker Unit
|
RMU Cable Incoming / Outgoing Unit
|
Direct Cable Unit or Cable Load Break Switch Unit
|
Auxiliary Transformer
|
Dry Type Transformer, 5 kVA, Dyn11
|
Output Voltage of Auxiliary Transformer
|
400 / 230 Vac or 220 / 127 Vac
|
|
Protection
|
Transformer Monitoring & Protection
|
Oil Level, Oil Temperature, Oil Pressure and Buchholz
|
Protection Degree of MV & LV Room
|
IP 54
|
Internal Arcing Fault Classification of YBS
|
IAC A 20 kA 1s
|
MV Relay Protection
|
50/51, 50N/51N
|
LV Overvoltage Protection
|
Type I+II
|
Anti-rodent Protection
|
C5 Medium in accordance with ISO 12944
|
|
Features
|
2 kVA UPS
|
Optional 3
|
MV Surge Arrester for MV VCB
|
Optional 3
|
|
General
|
Dimensions (W x H x D)
|
6,058 x 2,896 x 2,438 mm (20’ HC Container)
|
Weight
|
< 22 t
|
Operating Temperature Range
|
-25℃ ~ 60℃ 4 (-13°F ~ 140°F)
|
Relative Humidity
|
0% ~ 95%
|
Max. Operating Altitude
|
1,000 m 5
|
1,500 m 5
|
MV-LV AC Connections
|
Prewired and Pretested, No Internal Cabling Onsite
|
LV & MV Room Cooling
|
Smart Cooling without Air-across for Higher Availability
|
Communication
|
Modbus-RTU, Preconfigured with Smartlogger3000B
|
Applicable Standards
|
IEC 62271-202, EN 50588-1, IEC 60076, IEC 62271-200, IEC 61439-1
|
