Prefabricated Transformer Substation
China prefabricated compact transformer substation(Combined Transformer) Intelligent box type substation. ...

Detailed description

  • Description
  • Main characters of compact substation
  • 12kV/24kV/36kV Prefabricated Substation
  • 36kV/40.5kV Prefabricated Substation
  • Underground Prefabricated substation

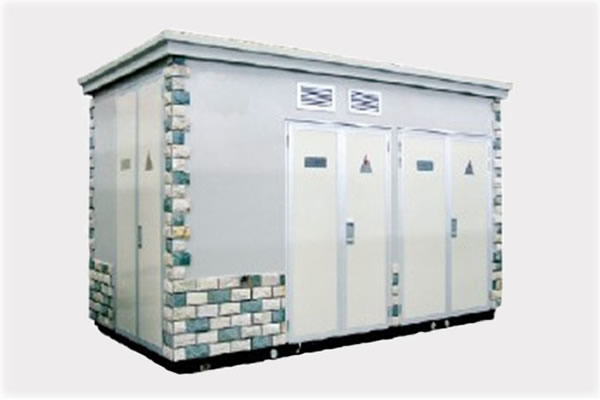

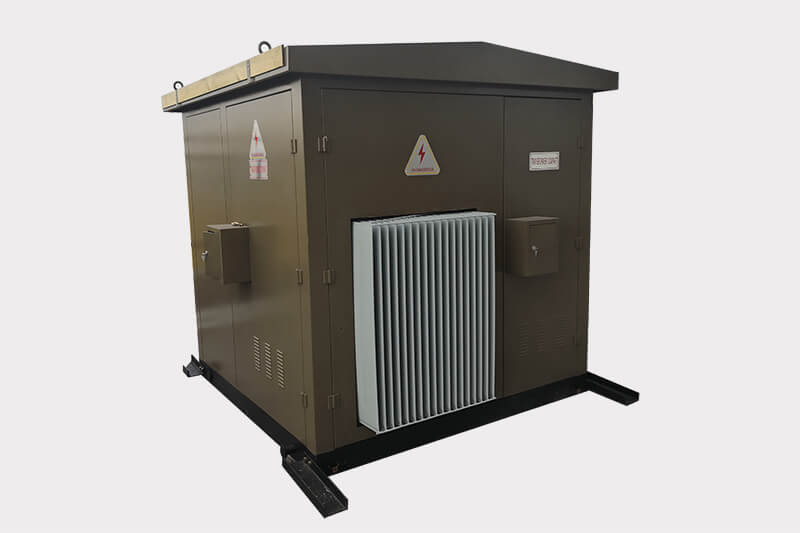

China prefabricated transformer substation(Combined Transformer)

Intelligent box substation :
The prefabricated-box substation is one of the most economic, convenient, effective and new distribution equipments. It assembles 12kV (24kV,36kV is available) high-voltage switch cabinet; transformer and low-voltage switch cabinet together, and is movable, assembled in plant.
The prefabricated box substation (Named Box Substation below) has many advantages, such as: completely whole set, small cubage, little area, ingoing load center, improving the power supply quality, reducing the circuit loss, shorten power delivery period, flexible location, adapt to setting, convenient assembly, reliable operation, small investment, rapid effect, and so on. Its widely used in urban republic power distribution, high rise building, residential areas, parks, and high-speed roads, as well as oil fields, industrial and mining enterprises, temporary construction areas. The product accords to the GB/T17467-1998, DL/T537-1993 standards.

Function characters:
System voltage:12kV(24kV,36kV is available) rated high voltage current:630A or more;
Collocating 3D transformer, reduce loss, upgrade the capability to 11 grade;
Collocating 3D transformer, upgrade insulation heat-resistant to H grade, can work long time in 180 setting;
Collocating 3D transformer, lessen 1/4-1/5 of the box cubage;
Design and make the ring network or users end as to the users requirements;
Design the box to steel plate configuration, complicated configuration or garden landscape configuration as to the users requirement;
Fix auto-parts, realize Three remote, check the data in distant, thief proof and power fare management;
Completely whole set, intelligent, little area, low investment, short project, ingoing load center, energy-saved and the lower loss, convenient assembly, adapted to setting, and so on.

The crust of the substation is designed according to the foreign advanced technology and physical reality. We provide many kinds of crust material such as aluminum alloy steel composite stainless steel board and non metal material(glass fiber).

Main Designation Characteristics

The HV side use charge switch or vacuum circuit breaker. The transformer could be oil type hermetically-sealed type and dry type.

The proof of the box is double layers structure and between the layers is filled with foam. There are independent boards in HV and LV room, and in the transformer room will install auto thermal controller heater and cooling equipment.

Note: we offer special customized products according to client's requirements.

Service environment

a) Air temperature: Maximum temperature: +50℃; Minimum temperature:-55℃

b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .

c) Altitude above sea level: Maximum installation altitude: 2500m

d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

e) No frequent violent shake



Main technical specifications

Name
Unit
HV equipment
Transformer
LV Equipment
Rated voltage
kV
12/24/36
(12/24/36)/0.4
0.4
Rated current
A
630
3/75-150/3750
Less than 4000
Frequency
Hz
50
Rated Capacity
kVA
50-2500
Pfr withstand
kV
42/50/70/95
2.5
BIL
kV
75/125/170/185

Crust Protection Grade

IP23
Oil type 55; dry type 65
IP23
Noisy Grade
dB



Appearance Dimensions
mm
According to primacy wiring circuit schema

General

YB() series products is a kind of set of equipment which assembles the MV switch apparatus, transformer, LV distribution equipment together according to fixed connection scheme. This series substation is suitable for neighborhood unit, hotel, large-scale work site and high building that the voltage is 12kV /24kV/36kV/40.5kV, the frequency is 50Hz and the capacity is under 2500kvA.

professional compact substation factory

Service environment

a) Air temperature: Maximum temperature: +40℃; Minimum temperature:-25℃
b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level: Maximum installation altitude: 2500m
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e) No frequent violent shake



Main technical specifications

Name   Unit   HV equipment   Transformer   LV Equipment
Rated voltage   kV   12/24/36   (12/24/36)/0.4   0.4
Rated current   A   630 3/75-150/3750 Less than 4000
Frequency   Hz   50
Rated Capacity   kVA   50-2500
Pfr withstand   kV   42/50/70/95 2.5
BIL   kV 75/125/170/185
Crust Protection Grade     IP23 Oil type 55; dry type 65 IP23
Noisy Grade   dB
Appearance Dimensions   mm According to primacy wiring circuit schema
HV Room   LV Room Transformer Room



Main Designation Characteristics

The crust of the substation is designed according to the foreign advanced technology and physical reality. We provide many kinds of crust material such as aluminum alloy steel composite stainless steel board and non metal material(glass fiber).

The HV side use charge switch or vacuum circuit breaker. The transformer could be oil type hermetically-sealed type and dry type.

The proof of the box is double layers structure and between the layers is filled with foam. There are independent boards in HV and LV room, and in the transformer room will install auto thermal controller heater and cooling equipment.

Note: we offer special customized products according to client’s requirement.

china compact substation selection

36kV/40.5kV Prefabricated Substation Characteristics

This type substations are the HV side 40.5 kV, LV side 0.4-12 kV and 3 phase outdoor completeequipment .It is wide used in cities , towns ,factories and oil fields, wharfs etc. It is also used insome construction sites. The characteristics are small volume, convenient installation, low cost,high automation safe and reliable operation. Substation is combined with HV switch room,LVswitch room, relay room and transformer room.



Main technical specifications for 36kV/40.5kV Prefabricated Substation

Name
Unit
HV equipment
Transformer
LV Equipment
Rated voltage
kV
40.5
40.5/12/0.69/0.4
12/6.3/0.69/0.4
Rated current
A
Less than 1250

Less than 4000
Frequency
Hz
50
Rated Capacity
kVA
1250-20000
Pfr withstand
kV
70/95
42/2.5(Auxiliary)
BIL
kV
170/185
75
Crust Protection Grade

IP23
Oil type 55; dry type 65
IP23
Noisy Grade
dB



Appearance Dimensions
mm
According to primacy wiring circuit schema
36kV/40.5kV prefabricated transformer substation



Main Primacy Wiring Circuit Schemas for Substation(40.5kV)

Note: we offer special customized products according to client’s requirement.

This equipments also belong to this Prefabricated substation category with a compact and special function of HV, LV and Transformer are all underground. People can enter into it through a well.

This substation is suitable for installing in square seeded strip and park The clients can choose half-buried type or whole-buried type.

Sketch map of half-buried substation

Sketch diagram of whole-buried substation
