Auto recloser with programable software
Rockwil's auto recloser is offering a programble functions into: protection curves, relay logics, comminication protocols,timing,.....

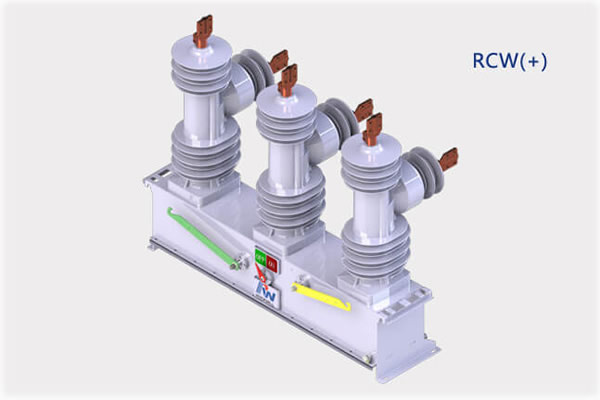

RCW+ type auto recloser is a high performance switchgear sealed with SF6 gas. Which is IP67 class switchgear.
RCW+ type auto recloser is DESIGNED For using very important field like key electricity supply points like: gas/oil/mine field, hospital/government/military area, important building etc.
RCW+ Auto recloser is equipped with a manual closing solution which is patent design according to the existing brands recloser problem, like ABB, Schneider, Eaton,Siemens, Hubbel,Noja,Jinkang,ect, these listed brand only offer a normal solution recloser which design cant provide with solution for manual closing with elctric power.
RCW+ auto recose is a fast switching switchgear, standard configuured with magnetic actuator and manual closing and opening/locking device, Max 6 voltage sensors.
RCW+ auto recloser is full complied with standard IEC62271-111, ANSI/IEEE C37.60.
RCW+ auto recloser is Offering:
Voltage Rating: 15kV- 38kV
Current Rating: 630A-1250A
Short circuit breaking: 16kA,..25kA
More informations pls go to study RCW+ manual.
RS-232 and RS-485 ports supporting.
DNP3.0 communication protocol support(*).
Modbus communication protocol is optional(*).
IEC 60870-5-101 communication protocol support.
IEC 60870-5-104 communication protocol support.(*).
The recloser can communicate through GPRS(Or GSM) modem with English or Specified language (*).
With optional functions for user.
Rated currents, System phase current.
Rated voltages, System phase voltage& secondary low voltage power supply voltage. Frequency, power(kWh),
reactive power(kV arh), power factor .
With optional reclosing interval for user pre-program:
Reclosing times setting support.
Dead time setting support.
With events recording function:
SOE 10000 operations record.
Fault record and normal operation record.
Note: (*) mean should customized by manufacturer if needed.
●Time-Overcurrent Curves The following information describes the curve timing for the curve and time dial settings made for the time-overcurrent
elements The time-overcurrent relay curves in conform to IEEE C37.112-1996 IEEE Standard Inverse-Time
Characteristic Equations for Overcurrent Relays.
||C1 (Standard Inverse)
C2 (Very Inverse)
C3 (Extremely Inverse)
C4 (Long-Time Inverse)
C5 (Short-Time Inverse)
||U1 (Moderately Inverse)
U3 (Very Inverse)
U4 (Extremely Inverse)
U5 (Short-Time Inverse)
● PC software for controller Testing, Setting, programing, Update.
Human friendship interface Programmable Time-Overcurrent curve
More further deatis about software feature, Pls contact us!
Programbale auto recloser,which is a auto reclose equiped with a programble software it can modifiy and re-edit the auto recloser controller to achieve the special required functions like: relay logics, curves,comminucation protocols,etc...
More further deatils pls consult with Rockwill.
Map guide&location Monitoring&Controlling
Setting & Modification Event Records
●Master software for Distribution Automation Management
